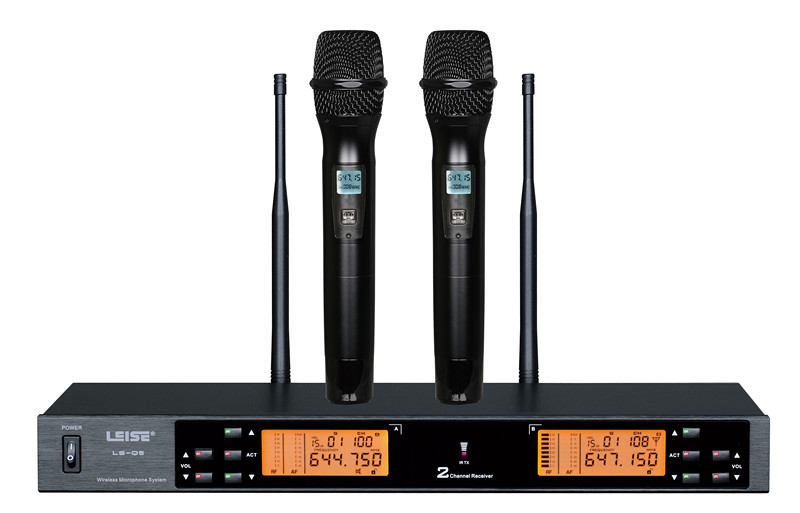

Name：LS-Q5 Dual Channel Wireless Microphone
Details
| 1.OVERALL | 2.RECEIVER | 3.WIRELESS MICROPHONE |
| Carrier frequency range：UHF500-900MHz | Power requirement： DC12-15V | Rf power：+12dBm |
| Stability：〈±20ppm | Power：5WATER | Brewage：ACT |
| Dynamic range：〉95dB | Image rejection: 95dB | Frequency deviation：±40KHZ |
| T.H.D：〈 0.5% | Sensitivity：5dBu(SINAD=20dB） | Power：1.5V X 2 |
| Freqency response：50HZ～18KHZ ±3dB | Receiving mode:quartz locked | Select accessories:U6 UT-07T UT-04T |
| Audio out：Balanced:0~700mV Mix:0~300mV |
Dimensions:482x210x43mm |
*Intelligent frequency spectrum analyse,autoscan free frequency.
*Infrared frequency synchronization automation function.
*With 200 channels for free selection.
*Receiver Digital volume control system,light touch button with simple setups.
*Tone key and squelch circuit can avoid interference.
*With audio compressing-expanding technology, the machine can lower noises and increase the dynamic range,it can also lower reecho.
*Handheld transmitter use metal body,rugged and durable.
