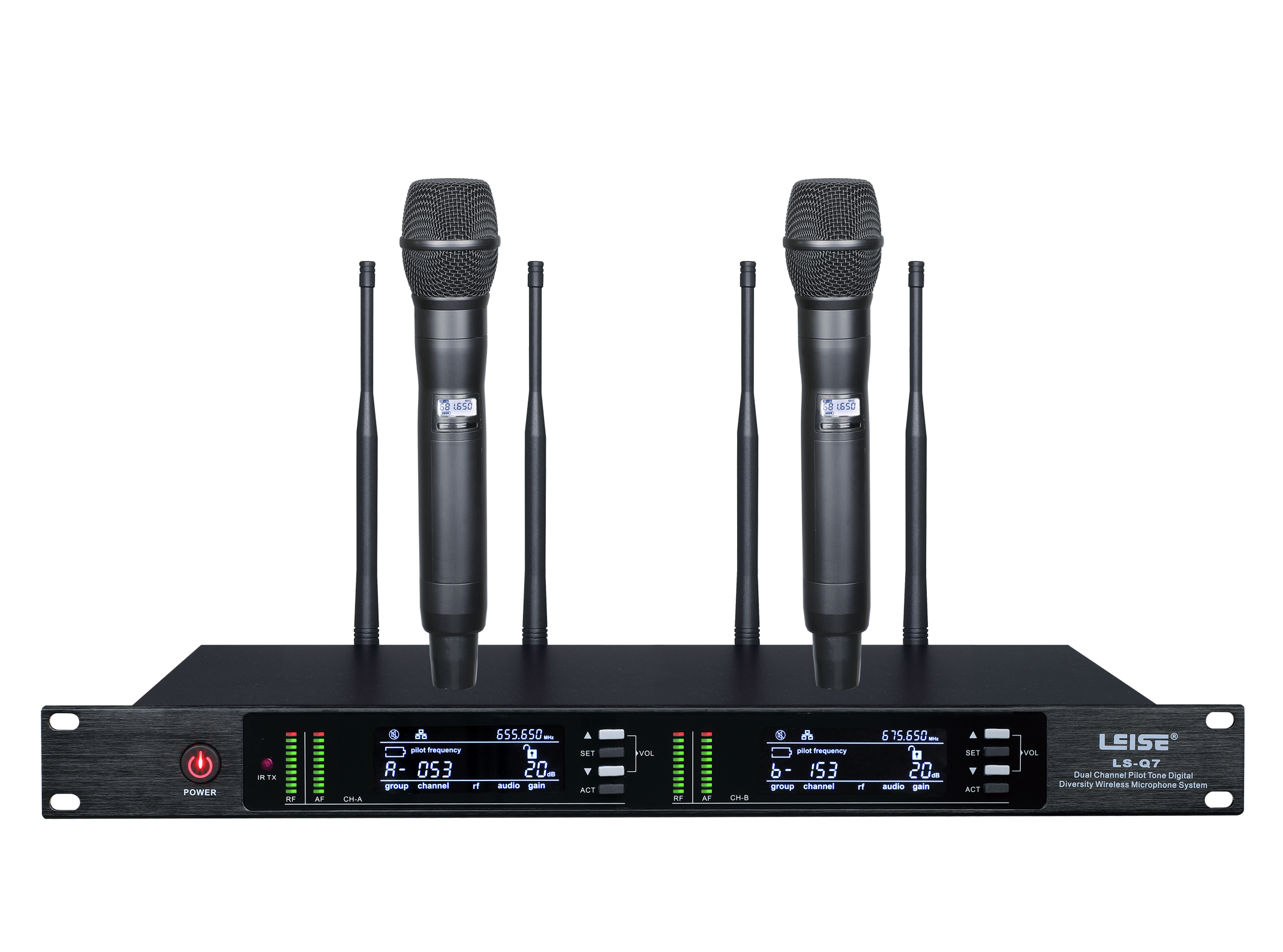

Name：LS-Q7 Dual Channel True Diversity Wireless Microphone
Details
| 1.OVERALL | 2.RECEIVER | 3.WIRELESS MICROPHONE |
| Carrier frequency range：UHF500-900MHz | Power requirement： DC12-15V | Rf power：+12dBm |
| Stability：〈±20ppm | Power：5WATER | Brewage：ACT |
|
Dynamic range：〉98dB |
Image rejection: 98dB | Frequency deviation：±40KHZ |
| T.H.D：〈 0.5% | Sensitivity：5dBu(SINAD=20dB） | Power：1.5V X 2(AA) |
| Freqency response：50HZ～18KHZ ±3dB | Receiving mode:quartz locked |
Select Accessories:U7 UT-08T |
| Audio out：Balanced:0～700mV Mix:0～300mV | Dimensions:482x230x43mm |
*Updated digital wireless pilot channel technology.
*Receiver battery volume show.
*Intelligent frequency spectrum analyse,autoscan free frequency.
*Infrared frequency synchronization automation function.
*SQL,Digital volume control system,light touch button with simple setups.
*With audio compressing-expanding technology, the machine can lower noises and increase the dynamic range,it can also lower reecho.
*Cast metal structure stands high mechanical strength.
*The input gain adjustment,RF power adjustment function.
